High-Frequency Tweeter Speaker

Appearance

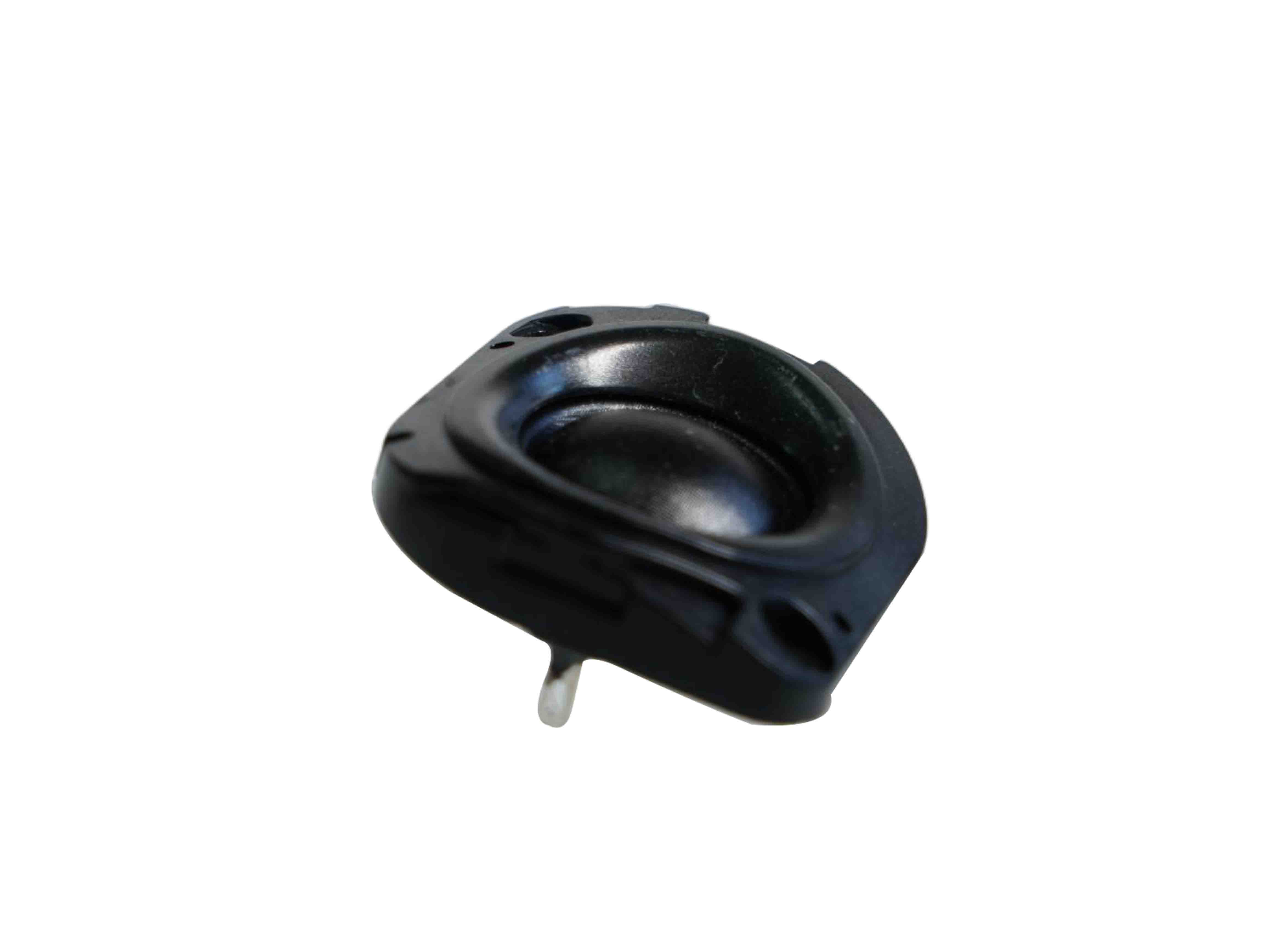

Front: The smooth, round, black diaphragm is the core sound-generating component. Surrounding the diaphragm is a square, black plastic mounting bracket

with circular mounting holes at its corners.

Side/Connection: Two metal pins extending from the bottom are visible, serving as electrical connections. Black plastic reinforces and insulates the pins from the housing.

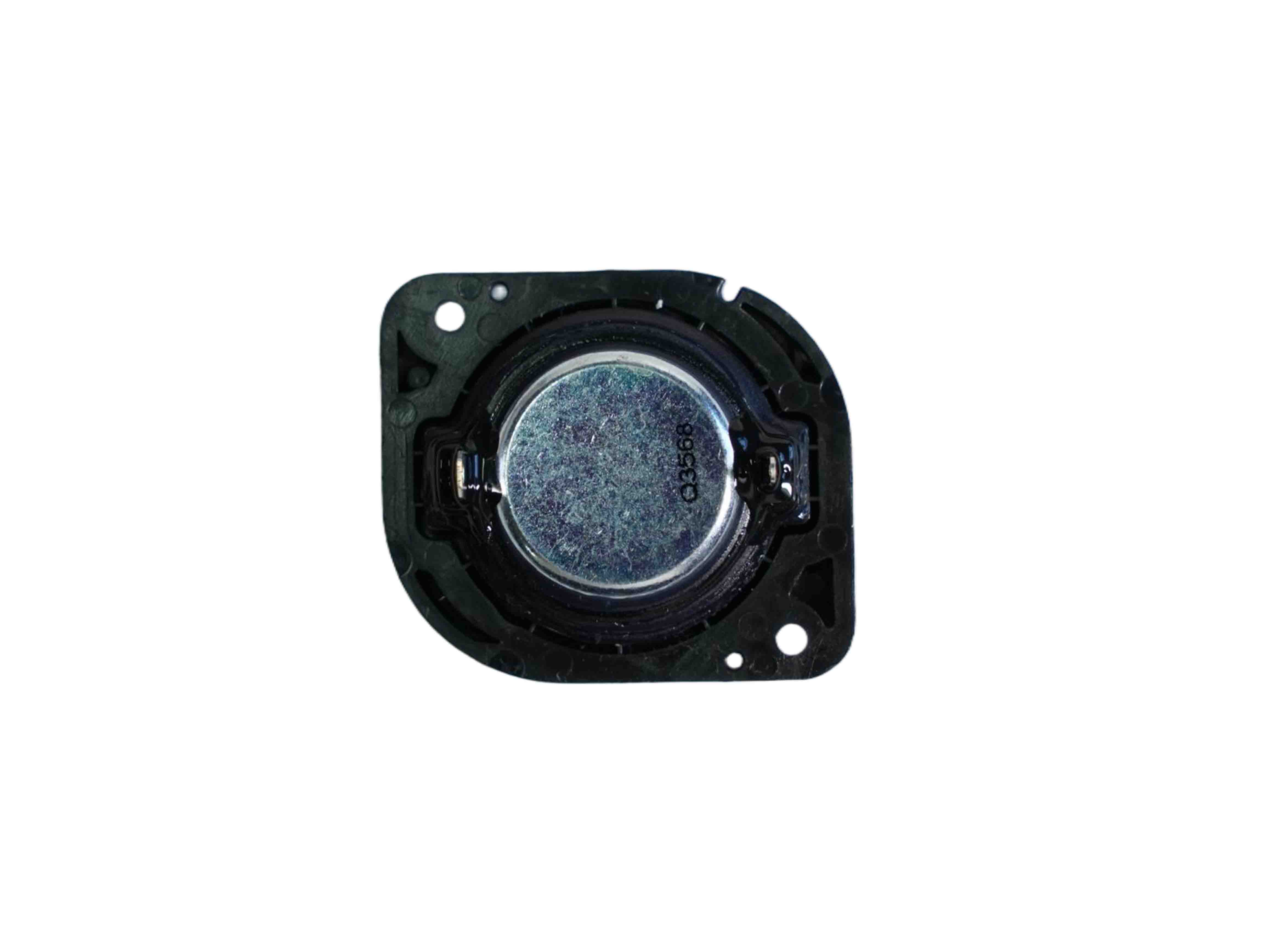

Back: The square bracket, the central back structure of the diaphragm, and the two internal wires connecting the diaphragm's voice coil are clearly visible.

The overall structure is simple.

Material: The diaphragm is likely paper-based or composite, the bracket is black plastic, and the pins are metal.

Features

Core Sound Generation Function: Converts electrical signals into sound.

Easy Installation: The four mounting holes on the square bracket allow for secure screw attachment to the device panel or cavity.

Welding Connection: The metal pin design facilitates soldering on the printed circuit board (PCB), providing a secure and reliable connection at a low cost.

Compact Structure: The miniaturized design saves space within the device.

Advantages

Stable Installation: The four-point mounting system effectively reduces vibration during operation.

Reliable Connection: Soldered connections eliminate potential loosening and oxidation of connectors.

Easy Integration: The standard square shape and pins facilitate integration during product design and automated soldering on the production line.

Instructions

Installation: Place the speaker into the designated opening in the device housing. Secure the bracket with screws from the back through the four mounting holes.

 Ensure unobstructed sound flow from the front of the diaphragm.

Circuit Soldering: Insert the two metal pins through the corresponding pads on the printed circuit board (PCB) and solder.

Always observe polarity: The positive and negative terminals must be identified according to the PCB design (usually marked with "+" and "-" on the board).

Reverse polarity will result in phase errors and poor sound quality.

Driver Matching: Use an appropriate audio amplifier circuit to drive the speaker. The input power must not exceed the speaker's rated value.

Application Scenarios

Household appliances: Microwave ovens and washing machines with sound units that indicate when an operation is complete.

Security equipment: Doorbells, smoke alarms, and door sensors with sound generators.

Office equipment: Status alarms for fax machines and time clocks.

Electronic toys: Toys that produce various sound effects.

Industrial control: Instruments, control panel buttons, or alarms.
