Tweeter Driver with Enhanced Sound Quality for Speakers

Appearance

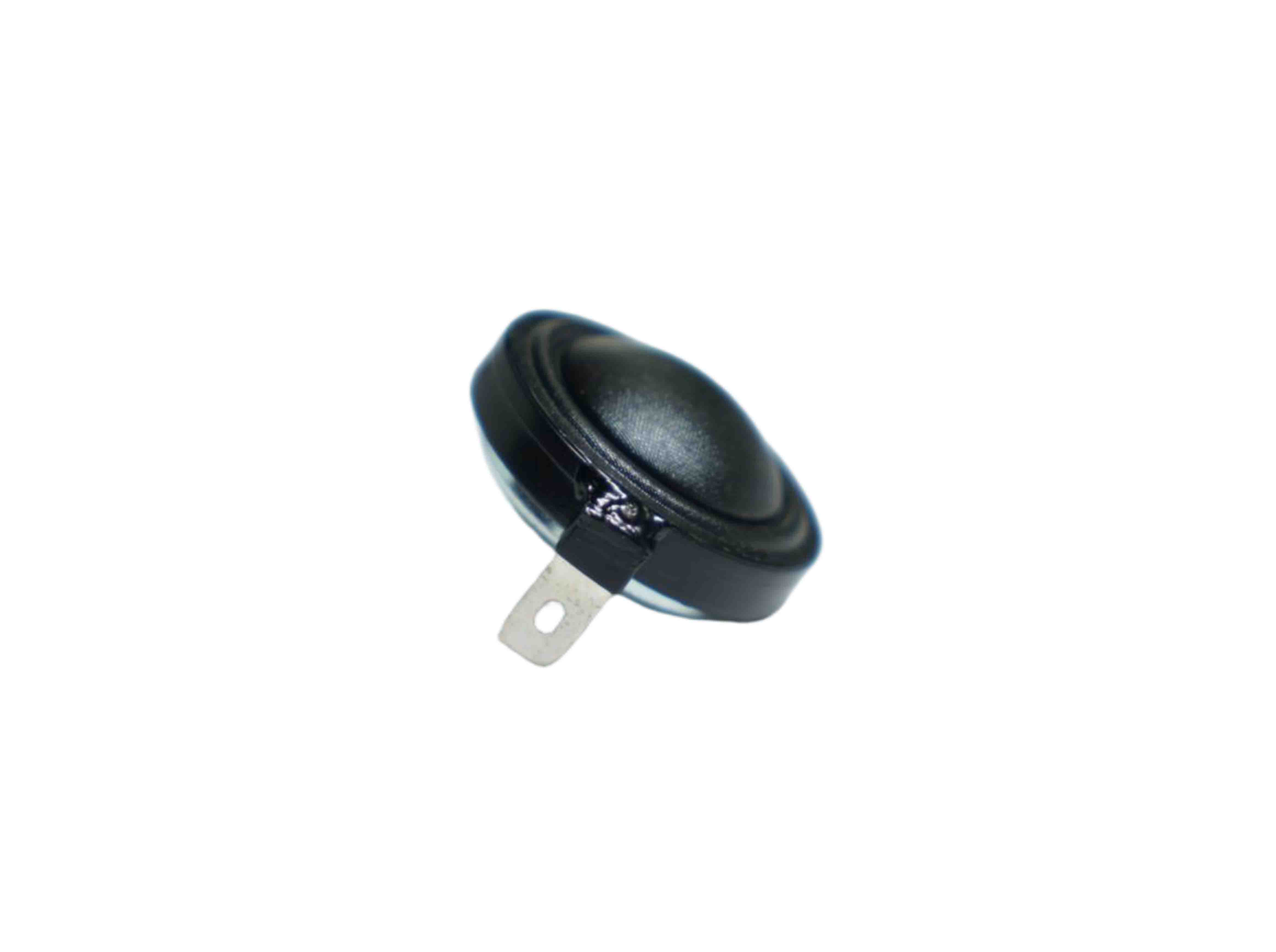

Diaphragm: The black, round, soft, dome-shaped diaphragm is visible, serving as the core sound-producing component.

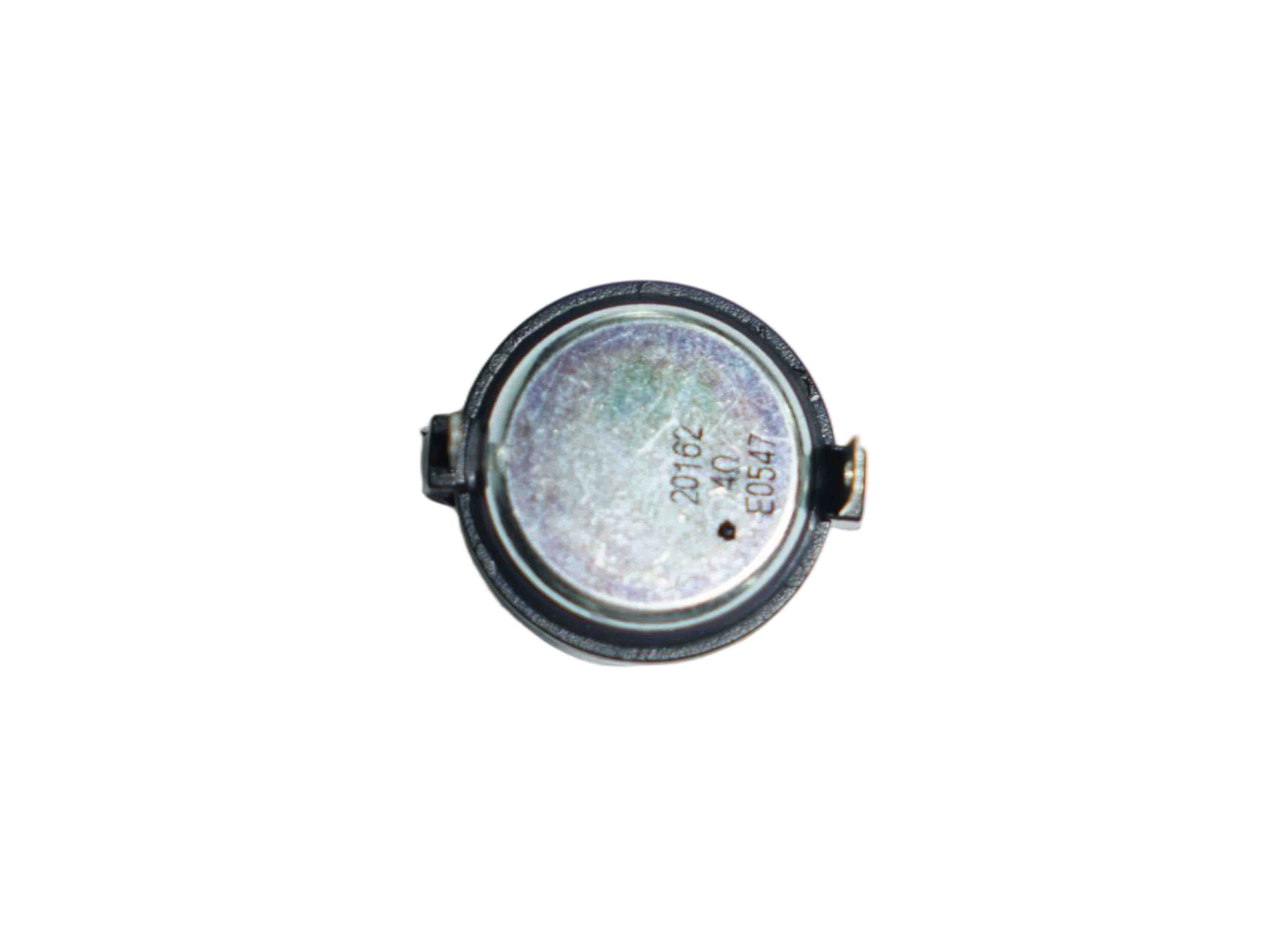

Bottom/Back: The metal basin and key specifications are visible. The label clearly displays the model code "2016," impedance "4Ω,"

and serial number "E0547." There are two L- or U-shaped black plastic mounting brackets on each side.

Connector: A close-up shows the silver-white metal pins with a square hole in the center for mechanical fastening and possible external connections.

The surface of the component to which the pins connect is marked "HDPE" (high-density polyethylene), indicating the material of the housing.

Features

Core Sound Generator: Converts electrical signals into sound.

Easy Installation: Designed with dedicated metal pins and plastic mounting brackets, it can be quickly and securely mounted to a device panel or

enclosure using screws or snaps.

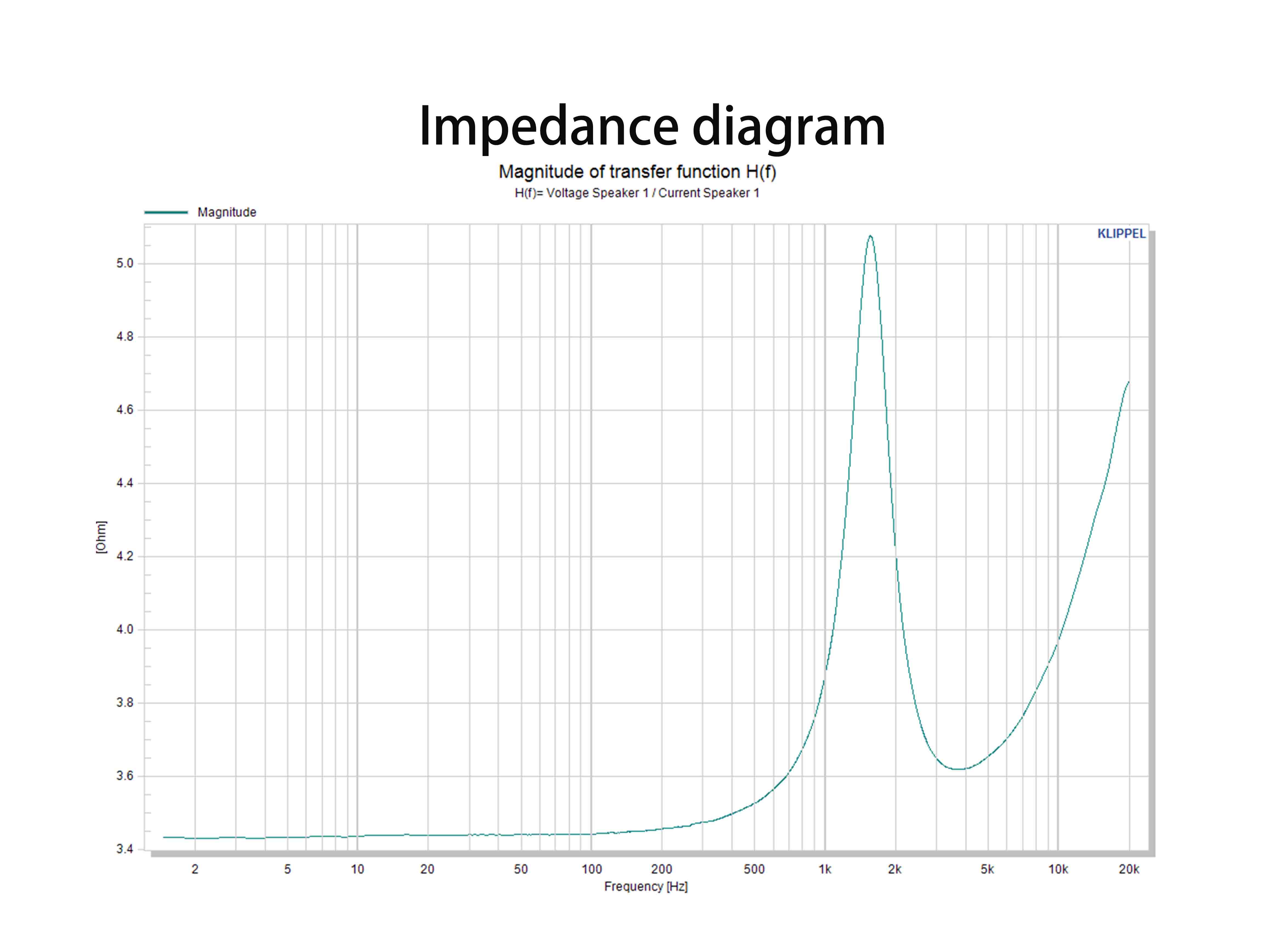

Clear Parameters: Impedance (4Ω) is directly marked for easy matching with the driver circuit.

Standard Interface: The metal pin design can serve as both a mechanical fixation and an electrical connection.

Advantages

Easy Installation: The dual design of pins and brackets provides a flexible and reliable installation solution.

Stable Connection: The metal pins provide excellent vibration resistance and reliable contact.

Plug and Play: Standardized pins enable a modular design, simplifying the production and assembly process.

Instructions

Installation: Insert the speaker unit's pins into the corresponding slots in the device base and secure with screws through

the holes in the plastic bracket or the square holes in the pins.

Electrical Connection: Connect the driver circuit wires to the metal pin terminals.

Testing: After completing the connections, power on and perform a sound test.

Application Scenarios

Security equipment: Smoke alarms and door sensor alarms.

Household appliances: Microwave oven and washing machine beeping units.

Industrial control: Status indicator audio devices for industrial instruments and control panels.

Communications equipment: Intercom receivers.

FAQ

Q1: What is your MOQ?

A: Our standard MOQ is 100 units for regular models. We can offer a lower MOQ for pilot orders, but the unit cost will be higher.

Q2: Can we customize the color or material of the speaker?

A: Yes. Color and material customization is available for OEM/ODM orders. Please contact us with your specific requirements for a quotation.

Q3: Do you provide ODM/OEM services?

A: Yes, we specialize in ODM and OEM services. We can design and produce speakers according to your technical specifications or design drawings.

Q4: How long does it take to develop a new product?

A: The development time depends on the complexity. It typically takes 4-8 weeks for a new design, including prototyping and testing.

Q5: What are your payment terms?

A: We commonly accept T/T (Bank Transfer). For new customers, 50% deposit is required to start production, and the balance 50% before shipment.

Q6: Can I mix different products in one container?

A: Yes, mixed orders are welcome. This is a cost-effective way to import. We will provide a detailed packing list for each product.

Company Overview

Jiangxi Roxound Acoustic Company was established in 2006 and is a professional speaker manufacturer with 20 years of acoustics experience. It has established manufacturing bases in Dongguan, Jiangxi, and Vietnam. The company's products are mainly used in consumer electronics, security systems, automobiles, musical instruments, micro-sized devices, and professional applications.

We are dedicated to providing high-quality speaker units and comprehensive solutions, including free EQ and DSP tuning, passive radiator, and duct design support. Leveraging simulation software such as Finemotor, a reliability design standard library, and a pre-design database accumulated over 15 years, we ensure efficient and reliable development. We can deliver samples within 3 days, complete projects within 7 days, and have access to a professional soundproof room to guarantee the precision of acoustic testing and verification.
