Full Range Speaker for Surround Sound Systems with Clear Sound

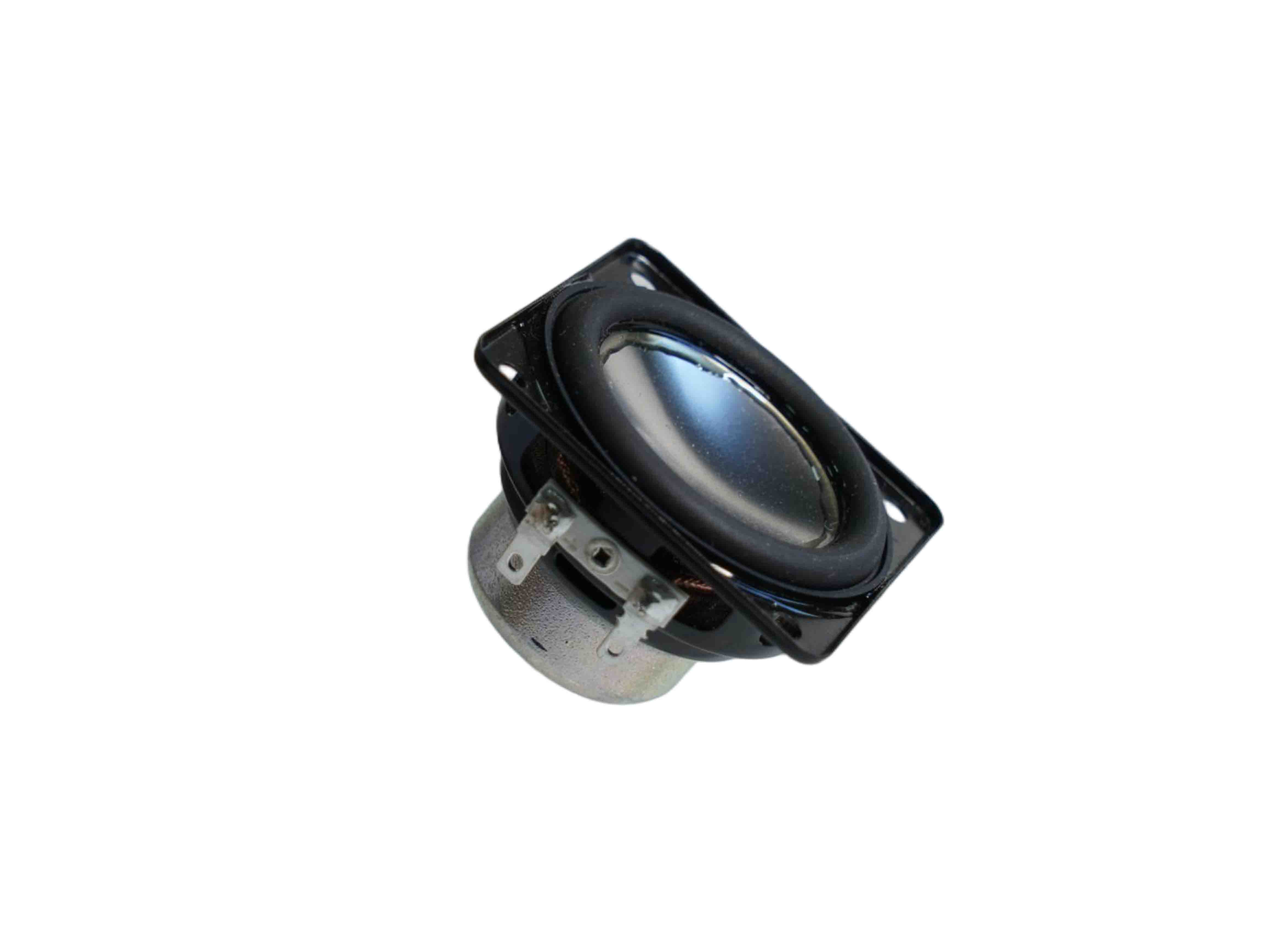

Appearance

Basin/Frame:A square, rounded-corner black metal (or high-strength engineering plastic) basket frame is used, providing a robust structure and effectively

suppressing resonance. Standard round screw holes at the four corners of the basket frame facilitate secure mounting to the cabinet or equipment panel.

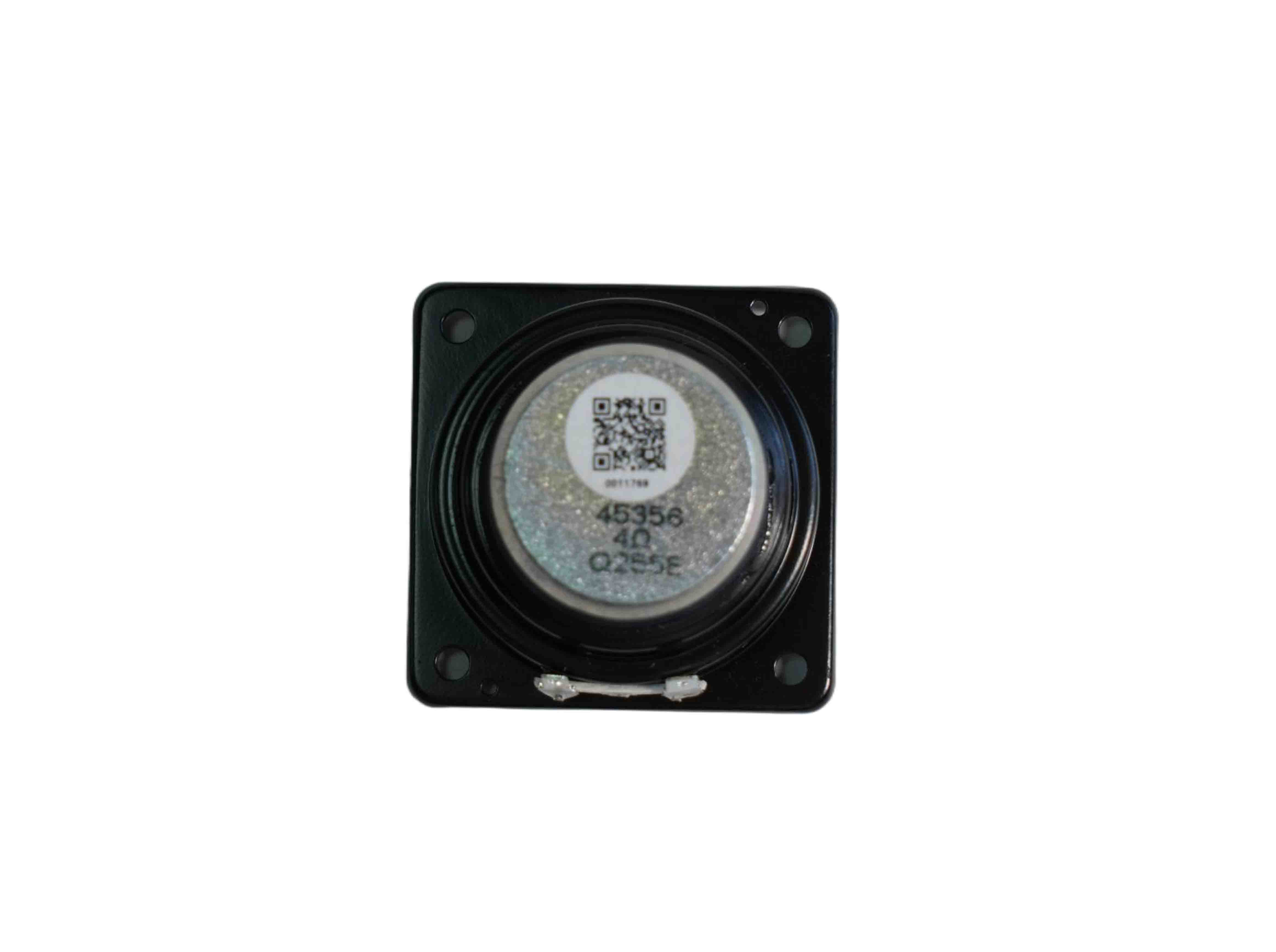

Dust Cap:A silver or light gray circular dust cap with a finely brushed texture is located in the center of the diaphragm. Its main function is to prevent dust from

entering the magnetic gap, and it also participates in the reproduction of high-frequency sounds.

Suspension: A black, corrugated rubber suspension ring connects to the edge of the cone. It supports the diaphragm and allows for precise piston movement;

its compliance (softness) directly affects the low-frequency response.

Features

Full-range/Mid-range Reproduction: Judging from the diaphragm size and structure, this unit is designed to reproduce mid-range and some high-frequency

sounds, and can be used as a full-range unit with clear vocal reproduction.

Rugged and Easy to Install: The square frame provides excellent stability and makes installation and positioning very convenient, offering high compatibility.

Durable Design: The rubber suspension has a long lifespan and can adapt to various environments; the robust frame ensures long-term reliability.

High Efficiency: The optimized magnetic circuit and diaphragm design ensure high electro-acoustic conversion efficiency.

Advantages

Clear Vocals: Its excellent mid-frequency response ensures clarity and realism in both spoken and main musical tones.

Easy Installation: The standardized square design and mounting holes simplify the integration process.

Stable Performance:Robust construction and high-quality materials guarantee reliable performance and a long service life.

Instructions

During installation, ensure all four screws are tightened evenly diagonally to prevent the frame from twisting. Twisting the frame can cause friction between

the voice coil and the magnetic gap (commonly known as "coil rubbing"), resulting in permanent damage.

Power Matching: Always use within the rated output power range of the compatible amplifier (or equipment). Overloading is strictly prohibited to prevent

instantaneous burnout of the voice coil.

Handle with Care: Avoid pressing the dust cap and diaphragm with your hands to prevent deformation.

Application Scenarios

Car audio systems: Midrange or full-range speaker units installed in car doors.

Public address systems: Background music and voice announcement systems in shopping malls, schools, and offices.

Home multimedia equipment: Computer multimedia speakers, portable Bluetooth speakers, etc.

Professional audio equipment: Midrange units in conference system speakers and stage monitor speakers.

Communication equipment: Handpiece speakers in walkie-talkies and telephones.

FAQ

Q1: What is your MOQ?

A: Our standard MOQ is 100 units for regular models. We can offer a lower MOQ for pilot orders, but the unit cost will be higher.

Q2: Can we customize the color or material of the speaker?

A: Yes. Color and material customization is available for OEM/ODM orders. Please contact us with your specific requirements for a quotation.

Q3: Do you provide ODM/OEM services?

A: Yes, we specialize in ODM and OEM services. We can design and produce speakers according to your technical specifications or design drawings.

Q4: How long does it take to develop a new product?

A: The development time depends on the complexity. It typically takes 4-8 weeks for a new design, including prototyping and testing.

Q5: What are your payment terms?

A: We commonly accept T/T (Bank Transfer). For new customers, 50% deposit is required to start production, and the balance 50% before shipment.

Q6: Can I mix different products in one container?

A: Yes, mixed orders are welcome. This is a cost-effective way to import. We will provide a detailed packing list for each product.

Company Overview

Jiangxi Roxound Acoustic Company was established in 2006 and is a professional speaker manufacturer with 20 years of acoustics experience. It has established manufacturing bases in Dongguan, Jiangxi, and Vietnam. The company's products are mainly used in consumer electronics, security systems, automobiles, musical instruments, micro-sized devices, and professional applications.

We are dedicated to providing high-quality speaker units and comprehensive solutions, including free EQ and DSP tuning, passive radiator, and duct design support. Leveraging simulation software such as Finemotor, a reliability design standard library, and a pre-design database accumulated over 15 years, we ensure efficient and reliable development. We can deliver samples within 3 days, complete projects within 7 days, and have access to a professional soundproof room to guarantee the precision of acoustic testing and verification.
