Versatile Full Range Speaker for Budget-Friendly Audio

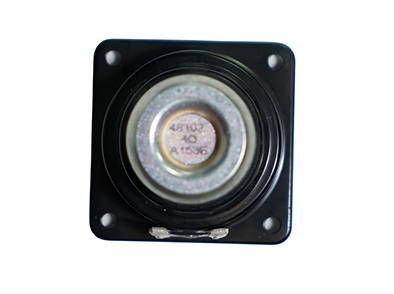

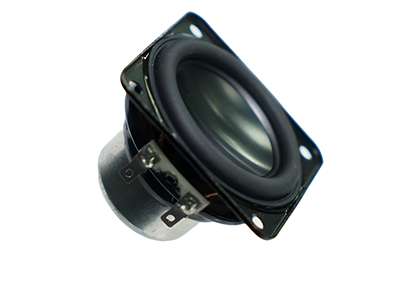

Appearance

Overall dimensions: square frame (side length approximately 50mm), equipped with φ2.5mm mounting holes at the four corners

Diaphragm system: circular composite diaphragm, about 35mm in diameter, with black rubber suspension on the edge

Magnetic circuit system: silver-white magnets can be seen on the back, using standard internal magnetic design

Wiring method: Two welding terminals are located on the back, with a standard spacing of 8mm

Features

Electroacoustic conversion: The core function is to efficiently convert electrical signals into sound signals to achieve audio playback.

Compact design: The compact size allows it to be adapted to a variety of small devices, meeting the needs for miniaturization and portability of devices.

Flexible installation: The mounting hole design of the outer frame facilitates installation and connection with other equipment and simplifies the assembly process.

Advantages

The compact size makes it easy to integrate into small electronic devices and save space.

Easy to install, can be quickly fixed on the equipment or box through the mounting holes in the outer frame

Instructions

A matching audio signal source (such as a player, power amplifier, etc.) needs to be connected to ensure normal transmission of electrical signals.

When installing, use the mounting holes of the outer frame and secure it firmly with screws and other fasteners to avoid displacement due to vibration during use.

Application Scenarios

It is suitable for small electronic devices, such as portable radios, children's toys (toys with sound functions), small multimedia speakers, prompt sound systems of some smart devices, etc., and provides sound output functions for these devices.

FAQ

Q1: What is your MOQ?

A: Our standard MOQ is 100 units for regular models. We can offer a lower MOQ for pilot orders, but the unit cost will be higher.

Q2: Can we customize the color or material of the speaker?

A: Yes. Color and material customization is available for OEM/ODM orders. Please contact us with your specific requirements for a quotation.

Q3: Do you provide ODM/OEM services?

A: Yes, we specialize in ODM and OEM services. We can design and produce speakers according to your technical specifications or design drawings.

Q4: How long does it take to develop a new product?

A: The development time depends on the complexity. It typically takes 4-8 weeks for a new design, including prototyping and testing.

Q5: What are your payment terms?

A: We commonly accept T/T (Bank Transfer). For new customers, 50% deposit is required to start production, and the balance 50% before shipment.

Q6: Can I mix different products in one container?

A: Yes, mixed orders are welcome. This is a cost-effective way to import. We will provide a detailed packing list for each product.

Company Overview

Jiangxi Roxound Acoustic Company was established in 2006 and is a professional speaker manufacturer with 20 years of acoustics experience. It has established manufacturing bases in Dongguan, Jiangxi, and Vietnam. The company's products are mainly used in consumer electronics, security systems, automobiles, musical instruments, micro-sized devices, and professional applications.

We are dedicated to providing high-quality speaker units and comprehensive solutions, including free EQ and DSP tuning, passive radiator, and duct design support. Leveraging simulation software such as Finemotor, a reliability design standard library, and a pre-design database accumulated over 15 years, we ensure efficient and reliable development. We can deliver samples within 3 days, complete projects within 7 days, and have access to a professional soundproof room to guarantee the precision of acoustic testing and verification.
