Compact Full Range Speaker with Durable Construction

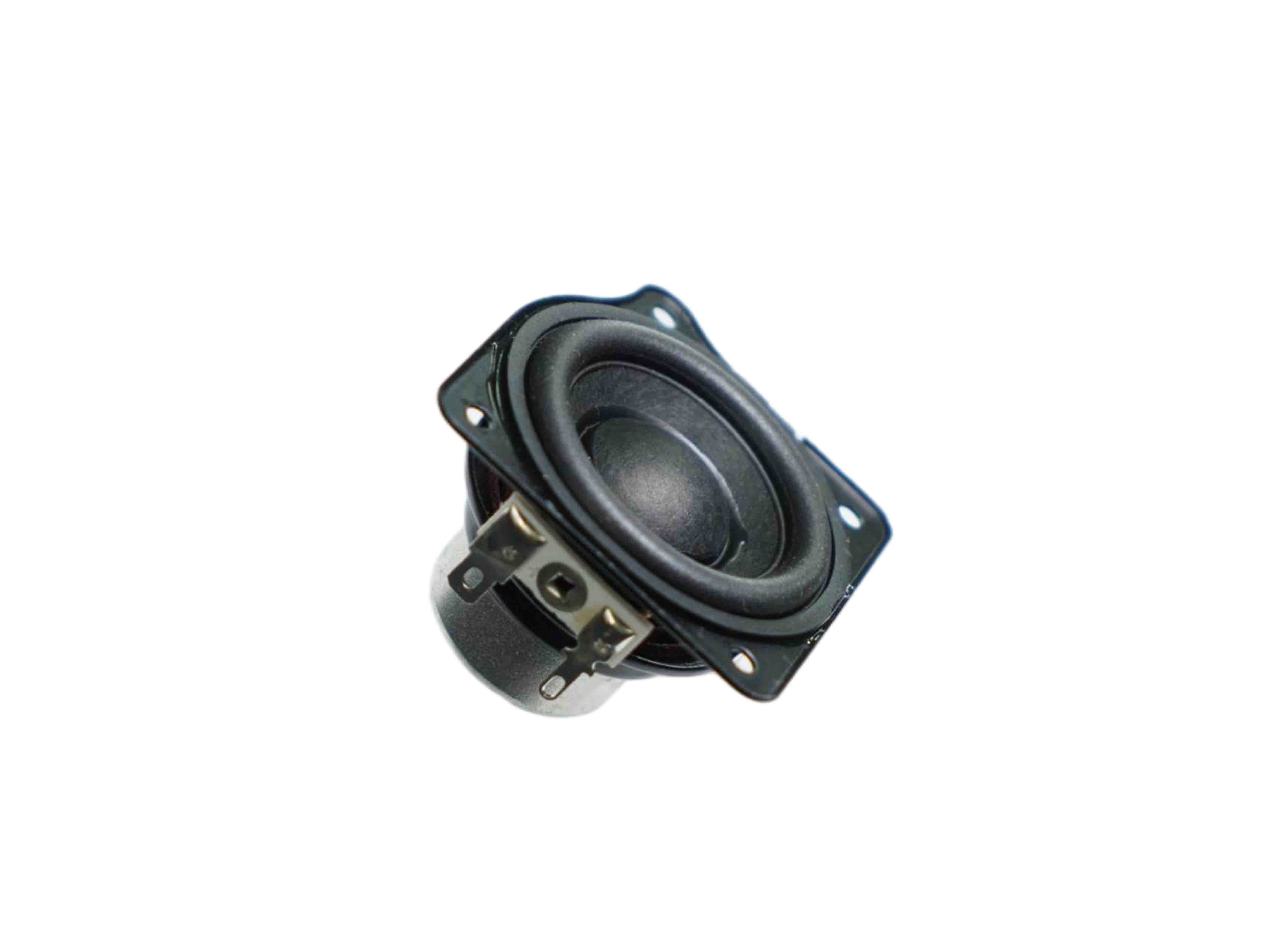

Appearance

Basin frame: It is made of square metal (such as steel or aluminum alloy) with rounded corners. The surface is coated with black and has a solid structure, which can effectively suppress resonance. The four symmetrical mounting holes on the basin frame are of standard design for easy installation and fixation.

Diaphragm system: The center is the main vibrating component. You can see a circular cone with a corrugated rim connected to its edge. This is the key structure for the diaphragm to move forward and backward. In the center of the cone is a dome-shaped dust cap, which prevents dust from falling into the magnetic gap and also participates in the reproduction of high-frequency sounds.

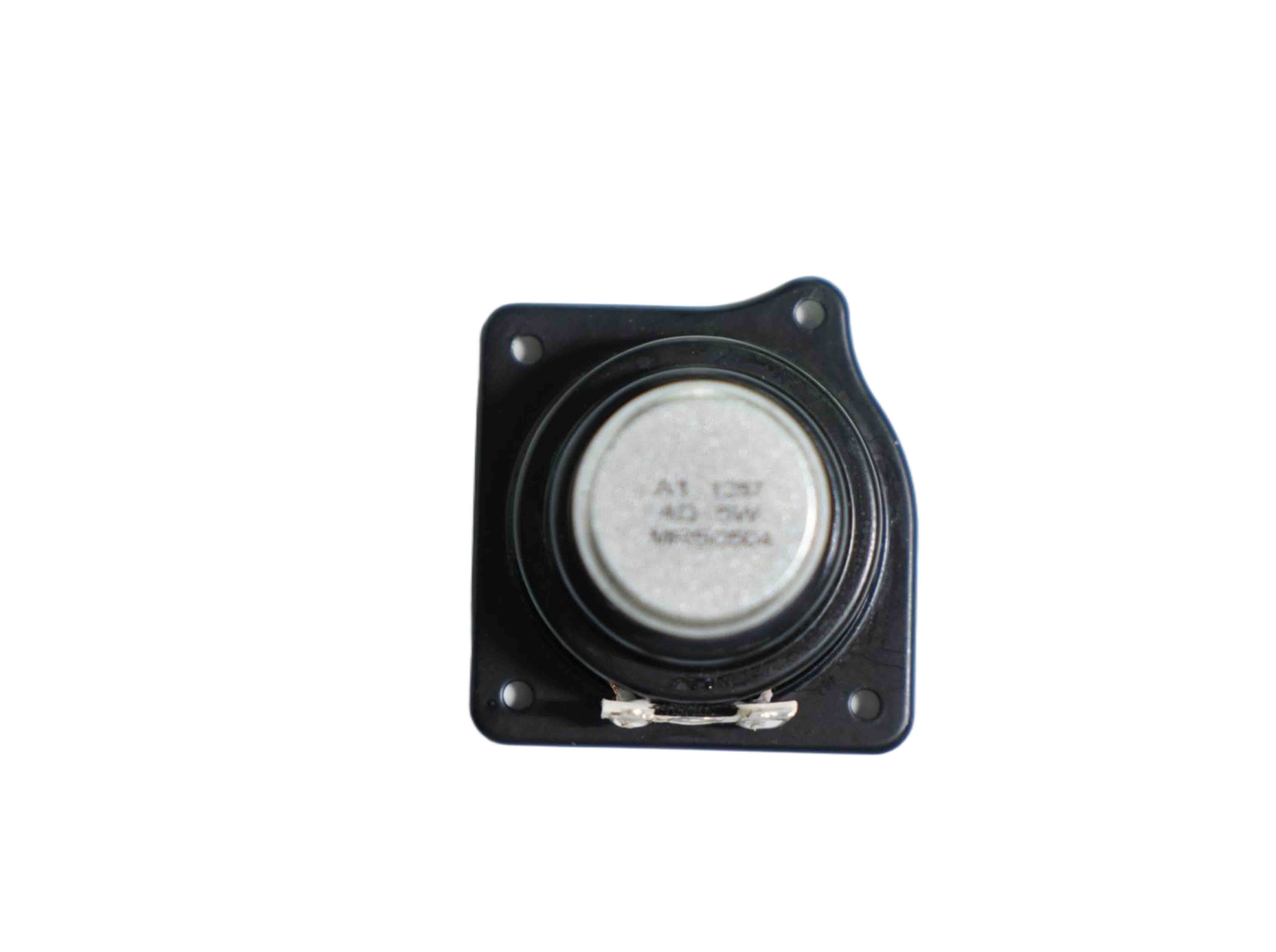

Magnetic circuit system: From the side view of the second picture, you can clearly see that behind the basin frame is a magnetic circuit system composed of silver metal (usually NdFeB or ferrite magnets). This part provides driving force for the vibration of the speaker, and its size determines the efficiency and power tolerance of the speaker to a certain extent.

Lead terminal: On one side of the diaphragm, there are two thin metal leads connected from the voice coil to the welding points on the side of the basin frame for accessing audio signals.

Features

Full-range/mid-low frequency reproduction: Judging from the size and structure of the diaphragm, this unit is designed to reproduce mid-low frequency sounds, or be used as a small full-range speaker.

Sturdy metal basin rack: Provides good structural stability and heat dissipation performance, extending service life.

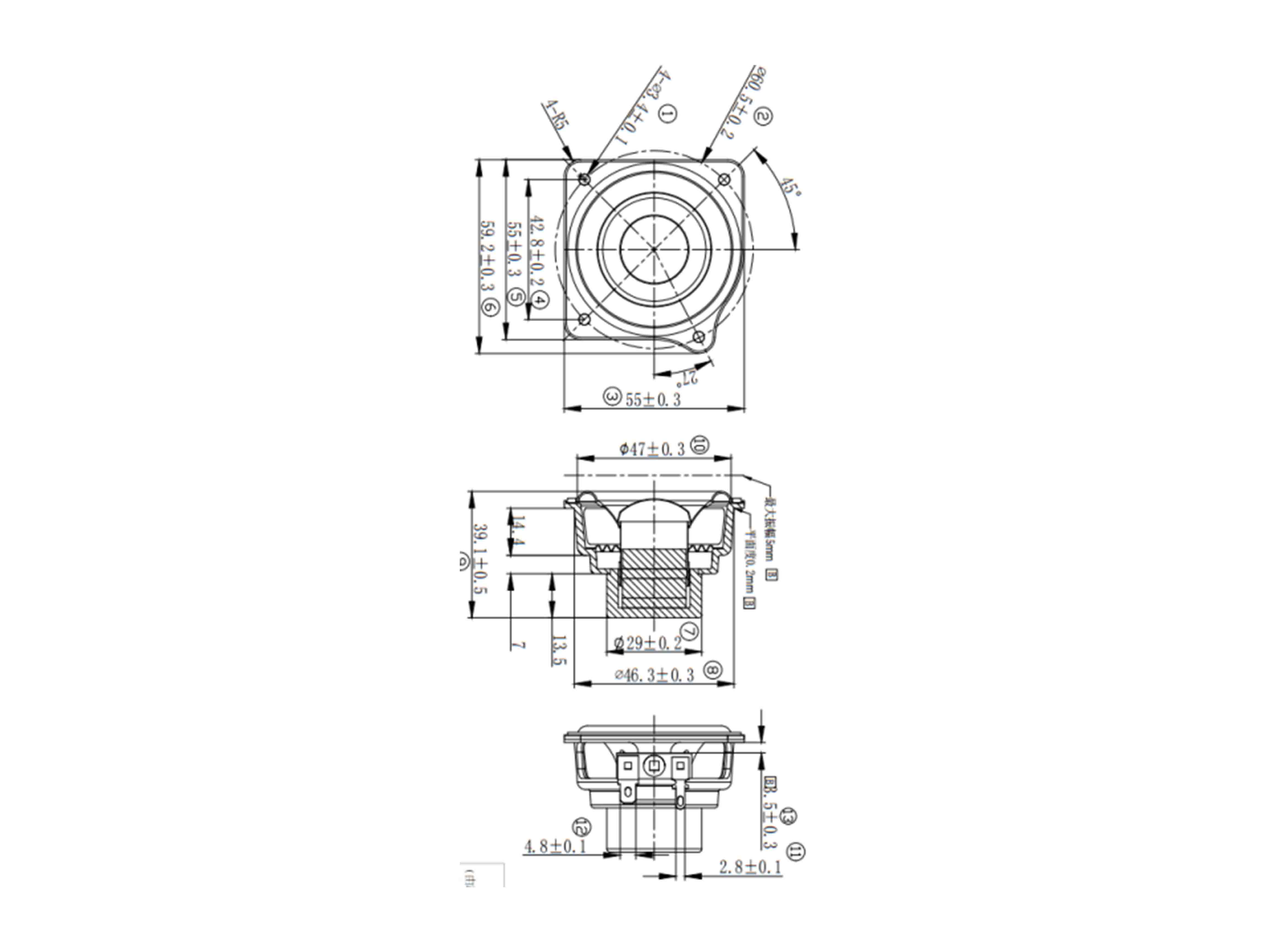

Standard installation dimensions: Square design with mounting holes, high compatibility, easy to integrate into various speaker cabinets or equipment panels.

Efficient magnetic circuit design: Judging from the size of the magnet, this speaker should have good sensitivity and power handling capabilities.

Advantages

Strong durability: Metal basin frames are more resistant to impact and deformation than plastic basin frames.

Stable performance: The solid structure helps reduce harmful vibrations during work and ensures sound purity.

Easy to install: The standardized design simplifies the product assembly process.

Instructions

Correct installation: When installing, ensure that the four screws are evenly stressed to avoid distortion of the basket, otherwise the voice coil may be scratched.

Be careful when wiring: When welding the lead terminals, you must move quickly and accurately to avoid overheating and damaging the voice coil or causing the leads to fall off.

Matching power: It needs to be used within the rated power of the power amplifier to prevent overload from burning the voice coil.

Application Scenarios

Car audio: As a door speaker or rear-mounted replacement unit.

Home multimedia speakers: computer speakers, portable Bluetooth speakers, etc.

Professional audio equipment: tweeter units of stage monitor speakers (need to be matched with crossovers), conference system speakers.

Musical instrument amplification: electric guitar speakers, electronic drum speakers, etc.

Public broadcasting system: Such as background music and broadcasting systems in shopping malls and schools.

FAQ

Q1: What is your MOQ?

A: Our standard MOQ is 100 units for regular models. We can offer a lower MOQ for pilot orders, but the unit cost will be higher.

Q2: Can we customize the color or material of the speaker?

A: Yes. Color and material customization is available for OEM/ODM orders. Please contact us with your specific requirements for a quotation.

Q3: Do you provide ODM/OEM services?

A: Yes, we specialize in ODM and OEM services. We can design and produce speakers according to your technical specifications or design drawings.

Q4: How long does it take to develop a new product?

A: The development time depends on the complexity. It typically takes 4-8 weeks for a new design, including prototyping and testing.

Q5: What are your payment terms?

A: We commonly accept T/T (Bank Transfer). For new customers, 50% deposit is required to start production, and the balance 50% before shipment.

Q6: Can I mix different products in one container?

A: Yes, mixed orders are welcome. This is a cost-effective way to import. We will provide a detailed packing list for each product.
