Full Range Speaker for Professional Audio Systems with Enhanced Performance

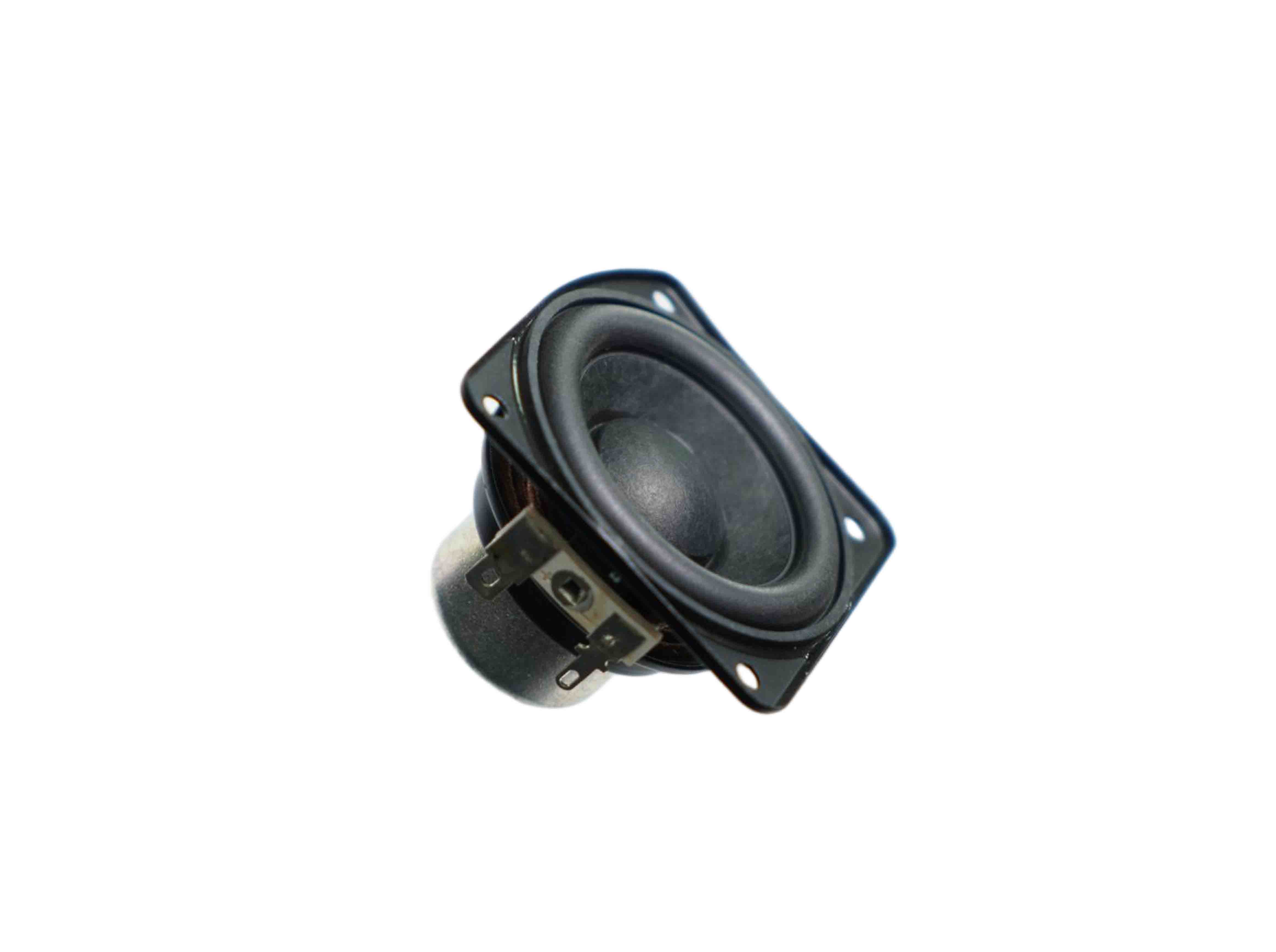

Appearance

Basin stand: Made of black engineering plastic with square and rounded corners. This material helps reduce weight and cost, and there are standard screw mounting holes at the four corners for quick installation and fixation.

Diaphragm system:

Cone: The core component is a black cone-shaped diaphragm with a subtle fabric texture on the surface. The material is likely to be an impregnated paper-based or cloth-based composite material. This material usually provides a warm and soft mid-range sound.

Suspended edge: The edge of the cone is connected to a black, relatively shallowly corrugated rim (usually made of rubber or linen), which is responsible for supporting the diaphragm and enabling it to perform linear reciprocating motion.

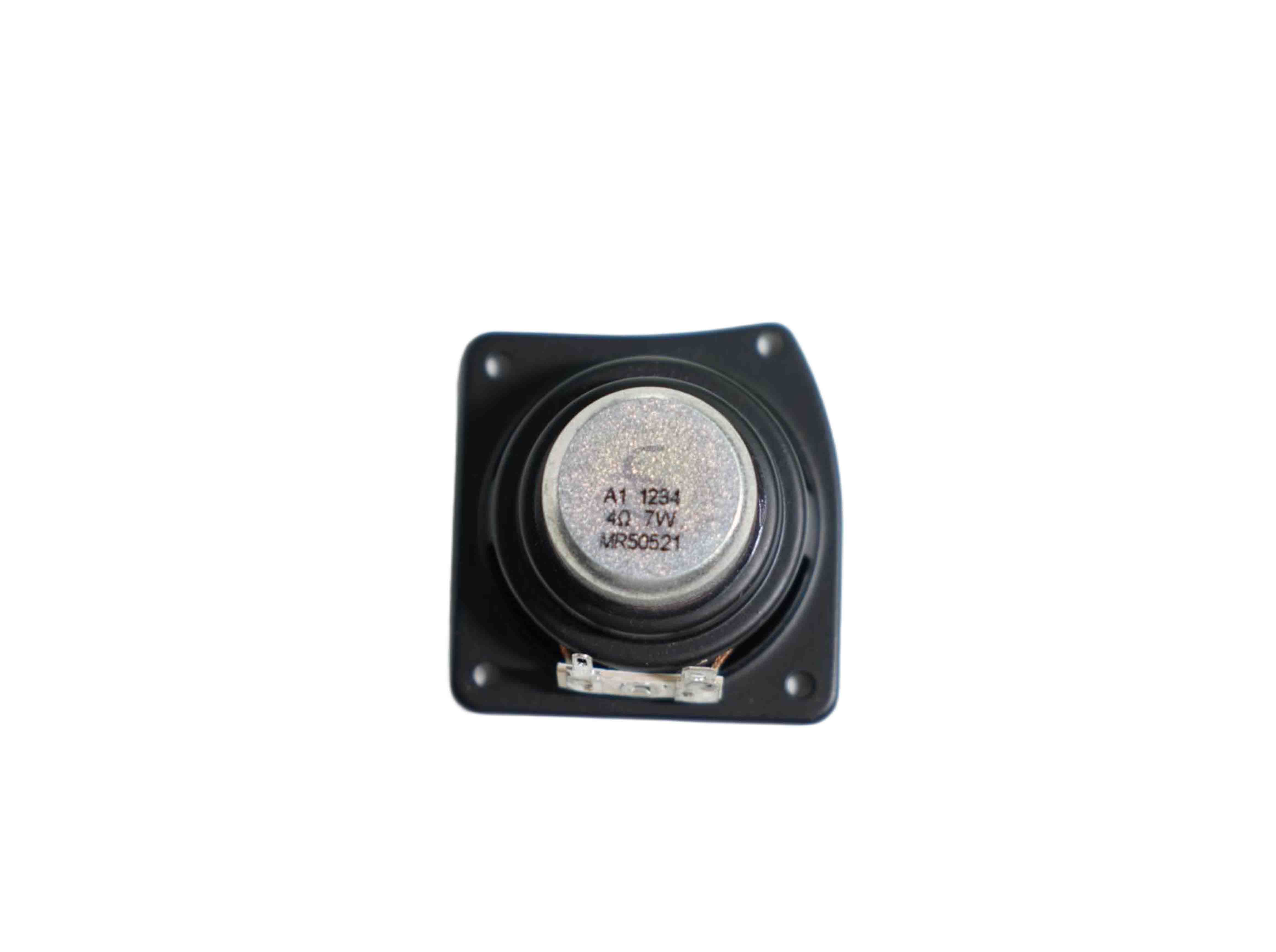

Magnetic circuit system: From a side view, you can see the magnetic circuit system at the rear of the basin frame. Its relatively small size suggests that this unit is designed for low to medium power applications, focusing on efficiency and compactness rather than high power output.

Terminals: On one side of the basin frame, there are two flat metal pins used as welding terminals for connecting audio signal lines.

Features

Expert in mid-frequency reproduction: Based on the comprehensive judgment of diaphragm size, material and magnetic circuit design, this unit is specially optimized for reproducing mid-frequency vocals and musical instrument sounds, with natural timbre performance.

Compact and lightweight design: The square plastic basin frame makes it very suitable for embedded installation in equipment with limited space, such as telephones, walkie-talkies, small multimedia speakers, etc.

High efficiency: The relatively small magnetic circuit and lightweight diaphragm mean that it has high sensitivity and can emit sufficient volume under low power driving.

Low-cost solution: The material selection reflects the optimal control of costs and is suitable for mass production.

Advantages

Clear vocals: Optimized specifically for mid-range frequencies, ensuring the clarity and naturalness of vocals and main musical tones.

Easy installation: The lightweight square design makes it easy to integrate into various product housings.

Energy-saving and efficient: High sensitivity, low driving power requirements.

Instructions

Power limitation: Be sure to use it at rated power, and overloading is strictly prohibited, as the magnetic circuit and voice coil may not be able to withstand high-power impacts.

Be careful with welding: When connecting signal wires to metal pins, weld quickly to avoid overheating and damaging the internal connection points between the pins and the voice coil leads.

Dust-proof and moisture-proof: The paper cone diaphragm is sensitive to humid environments and should be avoided in extreme environments.

Application Scenarios

Communication equipment: Ideal as a handset for landlines, walkie-talkies, intercom systems or as a hands-free speaker (the word "KEYPHONE" in the first picture also hints at this use).

Consumer electronics: small portable radios, alarm clocks, computer case alarm speakers, toys, etc.

Limited audio equipment: As a mid-range unit for computer multimedia speakers or a voice announcement unit in a public address system.

FAQ

Q1: What is your MOQ?

A: Our standard MOQ is 100 units for regular models. We can offer a lower MOQ for pilot orders, but the unit cost will be higher.

Q2: Can we customize the color or material of the speaker?

A: Yes. Color and material customization is available for OEM/ODM orders. Please contact us with your specific requirements for a quotation.

Q3: Do you provide ODM/OEM services?

A: Yes, we specialize in ODM and OEM services. We can design and produce speakers according to your technical specifications or design drawings.

Q4: How long does it take to develop a new product?

A: The development time depends on the complexity. It typically takes 4-8 weeks for a new design, including prototyping and testing.

Q5: What are your payment terms?

A: We commonly accept T/T (Bank Transfer). For new customers, 50% deposit is required to start production, and the balance 50% before shipment.

Q6: Can I mix different products in one container?

A: Yes, mixed orders are welcome. This is a cost-effective way to import. We will provide a detailed packing list for each product.

Company Overview

Jiangxi Roxound Acoustic Company was established in 2006 and is a professional speaker manufacturer with 20 years of acoustics experience. It has established manufacturing bases in Dongguan, Jiangxi, and Vietnam. The company's products are mainly used in consumer electronics, security systems, automobiles, musical instruments, micro-sized devices, and professional applications.

We are dedicated to providing high-quality speaker units and comprehensive solutions, including free EQ and DSP tuning, passive radiator, and duct design support. Leveraging simulation software such as Finemotor, a reliability design standard library, and a pre-design database accumulated over 15 years, we ensure efficient and reliable development. We can deliver samples within 3 days, complete projects within 7 days, and have access to a professional soundproof room to guarantee the precision of acoustic testing and verification.
