High-Performance Full Range Speaker

FAQ

Appearance

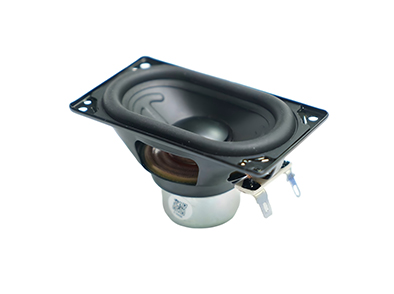

Front (combined two pictures): Black rectangular plastic shell with circular mounting holes at the four corners. The center is a silver circular metal diaphragm, surrounded by a black rubber suspension to provide compliant support.

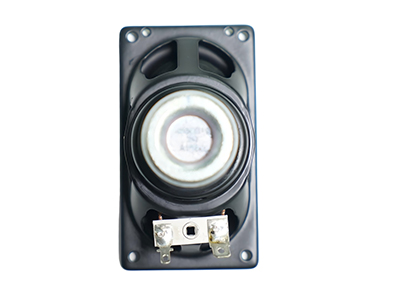

Connecting end (close-up in Figure 2): There are two silver metal soldering pins (lugs) at the bottom, one large and one small, for direct soldering on the circuit board. The pins have slight traces of oxidation, which is a normal stock phenomenon.

Materials and workmanship: The metal diaphragm contributes to high-frequency response, the rubber suspension has good durability, and the rectangular design saves space.

Features

High-definition audio: The "HD" logo indicates that it is optimized for wide-frequency response, low-distortion sound quality, and has higher sound clarity.

Space-optimized design: The rectangular casing can make more effective use of the internal space of the device and facilitate layout.

Sturdy installation: Four corner mounting holes ensure firm fixation and reduce vibration and noise.

Solder connection: Metal pin connections are reliable and suitable for automated production.

Advantages

High system integration: The addressable design avoids signal conflicts between multiple devices and simplifies wiring.

Excellent sound quality: HD design ensures clear and accurate sound.

Flexible configuration: Hardware dial setting, quick configuration without software.

Instructions

Set the address: According to the system plan, use a tool to flip the DIP switch on the unit and set the address to a value from 1 to 12.

Installation and fixation: Secure the speaker unit on the equipment panel through four mounting holes.

System connection: Connect the unit to a host system that supports the MIDI protocol, and bind the MIDI channel number to the corresponding audio signal on the host.

Application Scenarios

Professional Audio Mixer: Acts as a "Solo" monitor speaker for each input channel.

Broadcast station broadcast system: Configure independent prompt or alarm sound units for different broadcast channels.

Stage Sound Control System: Addressable speakers used to monitor different sound sources or effects channels.

Audio processing cabinet: In the rack equipment, different modules are equipped with status indication sounders.

FAQ

Q1: What is your MOQ?

A: Our standard MOQ is 100 units for regular models. We can offer a lower MOQ for pilot orders, but the unit cost will be higher.

Q2: Can we customize the color or material of the speaker?

A: Yes. Color and material customization is available for OEM/ODM orders. Please contact us with your specific requirements for a quotation.

Q3: Do you provide ODM/OEM services?

A: Yes, we specialize in ODM and OEM services. We can design and produce speakers according to your technical specifications or design drawings.

Q4: How long does it take to develop a new product?

A: The development time depends on the complexity. It typically takes 4-8 weeks for a new design, including prototyping and testing.

Q5: What are your payment terms?

A: We commonly accept T/T (Bank Transfer). For new customers, 50% deposit is required to start production, and the balance 50% before shipment.

Q6: Can I mix different products in one container?

A: Yes, mixed orders are welcome. This is a cost-effective way to import. We will provide a detailed packing list for each product.

Company Overview

Jiangxi Roxound Acoustic Company was established in 2006 and is a professional speaker manufacturer with 20 years of acoustics experience. It has established manufacturing bases in Dongguan, Jiangxi, and Vietnam. The company's products are mainly used in consumer electronics, security systems, automobiles, musical instruments, micro-sized devices, and professional applications.

We are dedicated to providing high-quality speaker units and comprehensive solutions, including free EQ and DSP tuning, passive radiator, and duct design support. Leveraging simulation software such as Finemotor, a reliability design standard library, and a pre-design database accumulated over 15 years, we ensure efficient and reliable development. We can deliver samples within 3 days, complete projects within 7 days, and have access to a professional soundproof room to guarantee the precision of acoustic testing and verification.
