Compact Full Range Speaker with Rich Sound

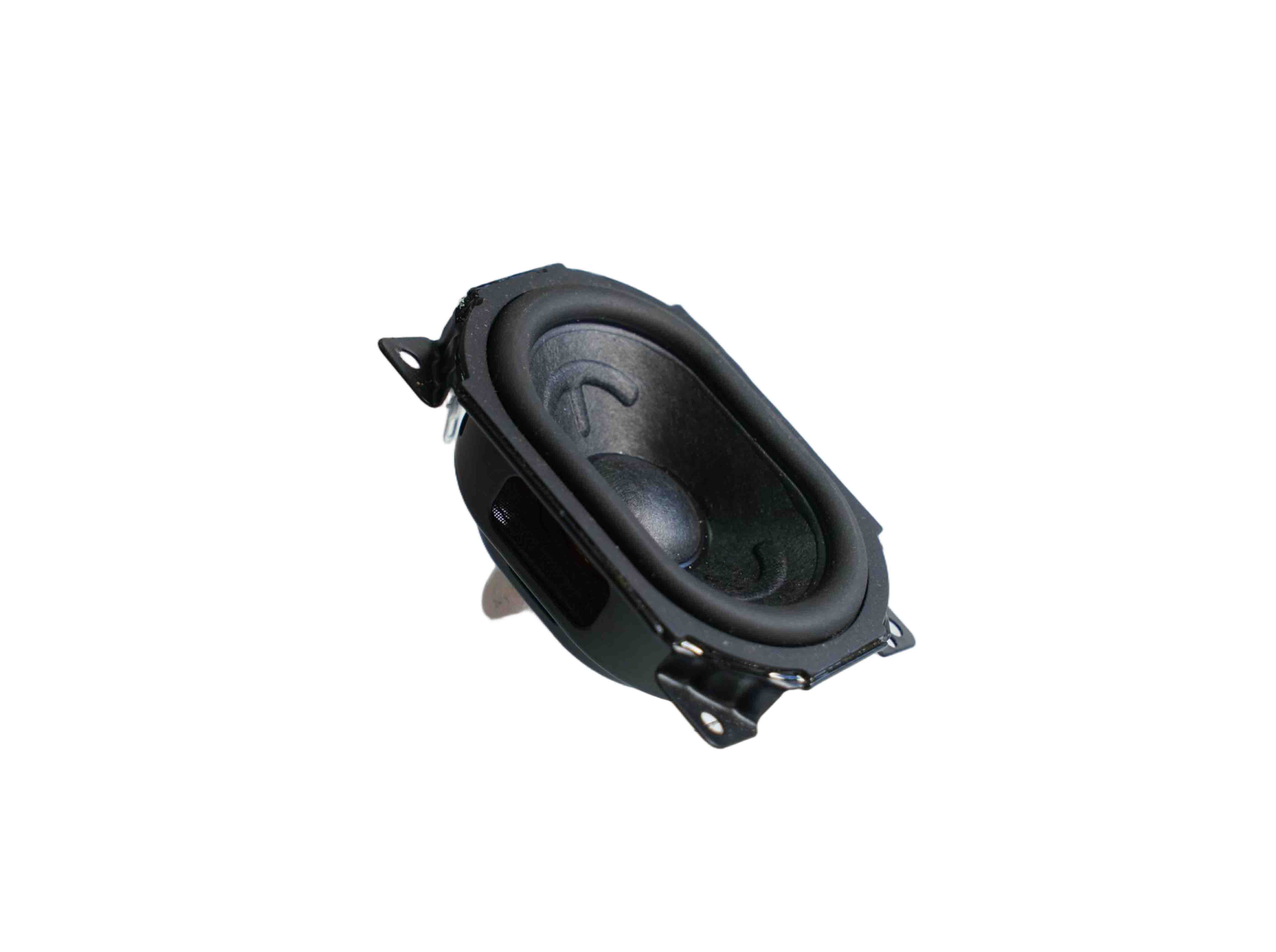

Appearance

Elliptical Diaphragm: This is the core feature of this product. The diaphragm is a beautifully elliptical shape, made of what appears to be paper or composite fiber,

with a distinctive concentric circle texture and brand logo (the "TΛT" logo is visible). This non-circular design is intended to optimize frequency response and sound

wave diffusion characteristics.

Suspension Edge: A black, corrugated rubber or foam suspension edge connects to the diaphragm's edge, supporting it and allowing for precise piston-like motion.

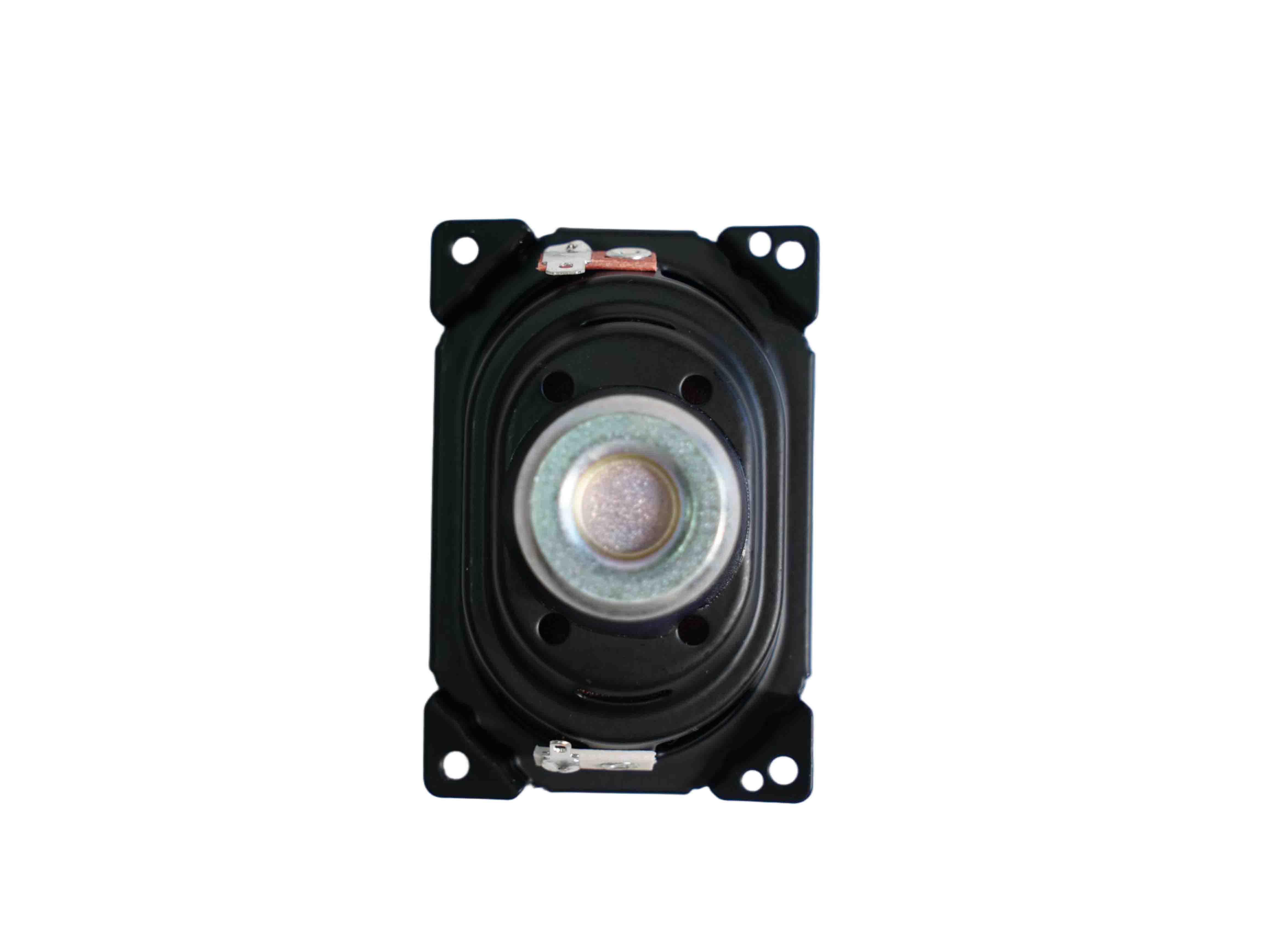

Band and Stand: The diaphragm is surrounded by a square metal bracket with perforated mounting lugs at the four corners for secure mounting to the enclosure.

This robust bracket structure effectively suppresses resonance.

Features

Special acoustic diffusion: The major and minor axis design of the elliptical diaphragm can alter the vertical and horizontal diffusion angles of sound waves,

potentially resulting in a wider "sweet spot" or more controllable directivity.

Optimized frequency response: The design is tailored for specific frequency bands (typically mid-low frequencies), reducing distortion caused by diaphragm

splitting vibrations.

Rugged mounting structure: The metal bracket ensures installation stability and reliability.

Space efficiency: The elliptical design can potentially offer a larger effective vibrating area than a circular diaphragm for the same diagonal dimensions.

Advantages

Potentially wider soundstage: The elliptical design helps control the vertical diffusion of sound while maintaining broad horizontal diffusion, creating a more

open listening experience.

Stable structure: The metal frame provides excellent stability.

Unique design: Non-circular diaphragms are commonly found in products with specific sound quality requirements.

Instructions

Installation Direction Notes:When installing oval speakers, pay attention to the orientation (usually vertical or horizontal along the long axis) to achieve the

desired sound field effect.

Power Matching:Always use within the rated power range of the compatible amplifier; overloading is strictly prohibited.

Handle with Care:Avoid pressing on the fragile oval diaphragm, as it is more easily deformed than a circular diaphragm.

Application Scenarios

Car audio systems: The oval shape of the speakers, used as mid-bass speakers in car doors, makes better use of the irregular space inside the door.

Professional audio equipment: Used in broadcast systems or performance monitors requiring specific sound field coverage angles.

High-end multimedia speakers: Used in computer speakers or home audio systems that pursue unique acoustic characteristics.

Musical instrument amplifiers: Such as electric guitar amplifiers, whose special diffusion characteristics can contribute to stage performance.
