Full Range Audio Speaker for Home and Studio Use

Appearance

Beat/Frame: A sturdy, square, rounded-corner black metal basket effectively suppresses resonance. Standard screw holes at the four corners facilitate

secure installation.

Elliptical Diaphragm and Phase Cone: This is the core feature of this speaker. Instead of a standard dust cap, the center of the diaphragm features a

raised, integrally molded "T"-shaped phase cone. This design effectively manages the phase of high-frequency sound waves, improving high-frequency

extension and clarity while enhancing diaphragm rigidity.

Suspension:A black, corrugated rubber suspension surrounds the elliptical diaphragm, providing support and damping for the diaphragm's piston-like movement.

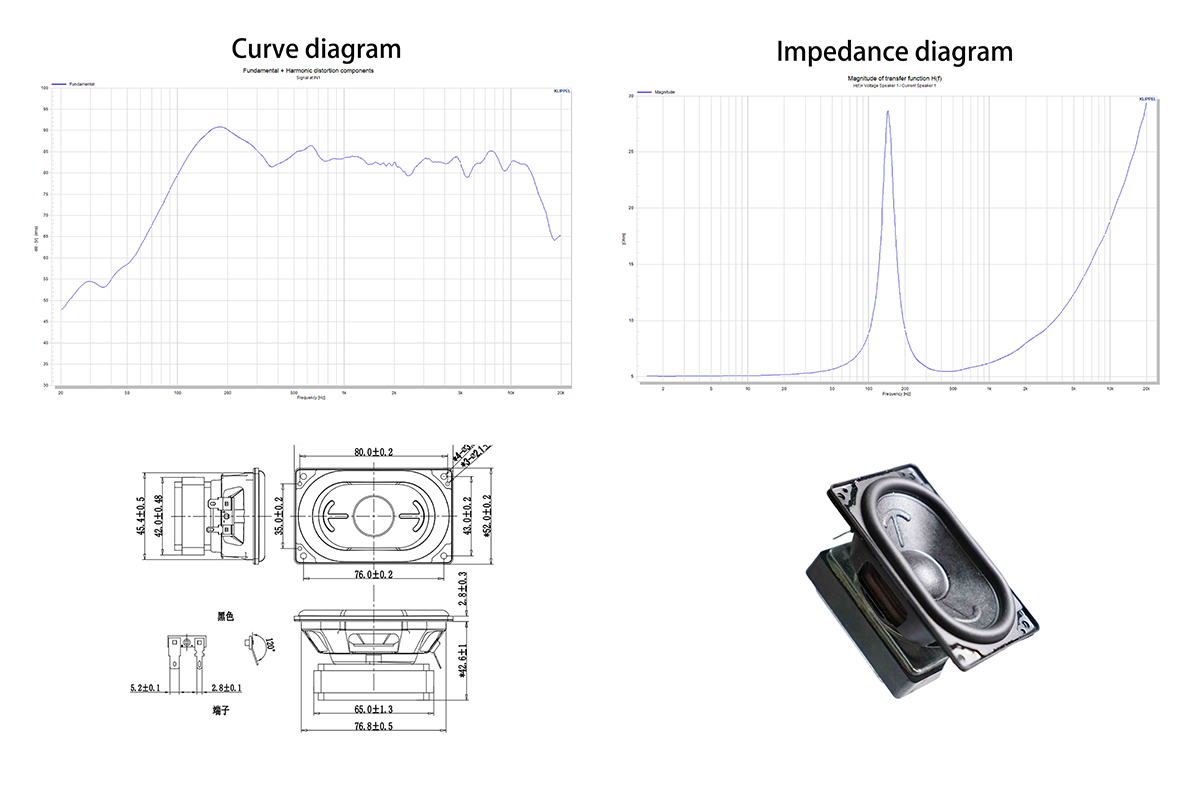

Magnetic Circuit System:As seen at the bottom of the second image, the ferrite core is relatively large, indicating good power handling and sensitivity.

Features

Phase Cone Technology: A Core Highlight. The "T"-shaped phase cone replaces the traditional dust cap and voice coil cover, improving high-frequency response

for clearer, more detailed sound and reducing power compression caused by voice coil heating.

Mid-Low Frequency Reproduction Expert: Judging from the diaphragm size and structure, this unit focuses on accurately reproducing mid- and low-frequency

sounds, delivering solid vocals and instrument sounds.

High-Efficiency Magnetic Circuit Design: A larger magnet ensures high electro-acoustic conversion efficiency.

Rugged Metal Construction: The metal frame provides excellent stability and heat dissipation.

Advantages

High-frequency clarity: The phase cone design delivers superior high-frequency detail and extension.

Low distortion: The rigid diaphragm and phase cone help reduce breakup vibration and coloration.

High power handling: The robust construction and large magnetic circuit allow it to withstand high input power.

Good heat dissipation: The phase cone and metal basket facilitate voice coil cooling, improving power handling capacity.

Instructions

During installation, ensure the screws are tightened evenly diagonally to prevent the frame from twisting, which could cause friction between the voice coil

and the magnetic gap (coil rubbing).

Power matching: Always use within the rated power range of the compatible amplifier; overloading is strictly prohibited.

Application Scenarios

Car audio: Used as mid-range or mid-bass speakers in car doors, providing accurate vocal and instrument reproduction in crossover systems.

Professional audio: Used in stage monitors to allow musicians to clearly hear their own voices; or in conference system speakers.

High-quality home audio: Used in bookshelf speakers or as the center channel in home theaters, prioritizing sound accuracy.

FAQ

Q1: What is your MOQ?

A: Our standard MOQ is 100 units for regular models. We can offer a lower MOQ for pilot orders, but the unit cost will be higher.

Q2: Can we customize the color or material of the speaker?

A: Yes. Color and material customization is available for OEM/ODM orders. Please contact us with your specific requirements for a quotation.

Q3: Do you provide ODM/OEM services?

A: Yes, we specialize in ODM and OEM services. We can design and produce speakers according to your technical specifications or design drawings.

Q4: How long does it take to develop a new product?

A: The development time depends on the complexity. It typically takes 4-8 weeks for a new design, including prototyping and testing.

Q5: What are your payment terms?

A: We commonly accept T/T (Bank Transfer). For new customers, 50% deposit is required to start production, and the balance 50% before shipment.

Q6: Can I mix different products in one container?

A: Yes, mixed orders are welcome. This is a cost-effective way to import. We will provide a detailed packing list for each product.

Company Overview

Jiangxi Roxound Acoustic Company was established in 2006 and is a professional speaker manufacturer with 20 years of acoustics experience. It has established manufacturing bases in Dongguan, Jiangxi, and Vietnam. The company's products are mainly used in consumer electronics, security systems, automobiles, musical instruments, micro-sized devices, and professional applications.

We are dedicated to providing high-quality speaker units and comprehensive solutions, including free EQ and DSP tuning, passive radiator, and duct design support. Leveraging simulation software such as Finemotor, a reliability design standard library, and a pre-design database accumulated over 15 years, we ensure efficient and reliable development. We can deliver samples within 3 days, complete projects within 7 days, and have access to a professional soundproof room to guarantee the precision of acoustic testing and verification.
