Compact Full Range Speakers with Clear Sound for Small Spaces

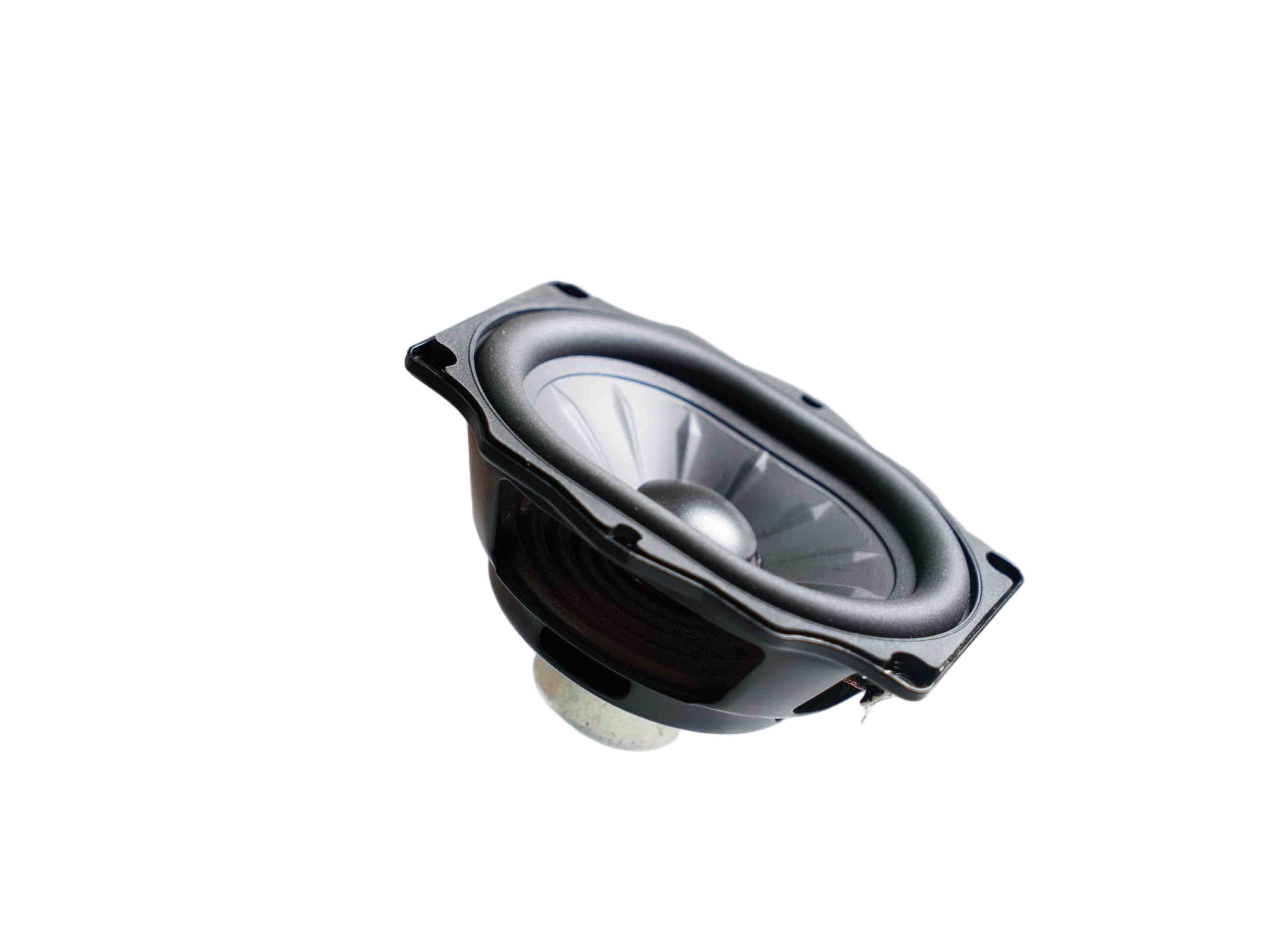

Appearance

Diaphragm System: Employing an elliptical coaxial design, the centrally protruding dome tweeter handles high frequencies, while the outer conical woofer

covers mid-low frequencies, achieving full-frequency sound coverage.

Suspension and Frame: The woofer diaphragm features a black rubber suspension edge to ensure long-stroke operation; the dark gray injection-molded

frame has round mounting holes at the four corners for easy fixation to car doors or panels.

Features

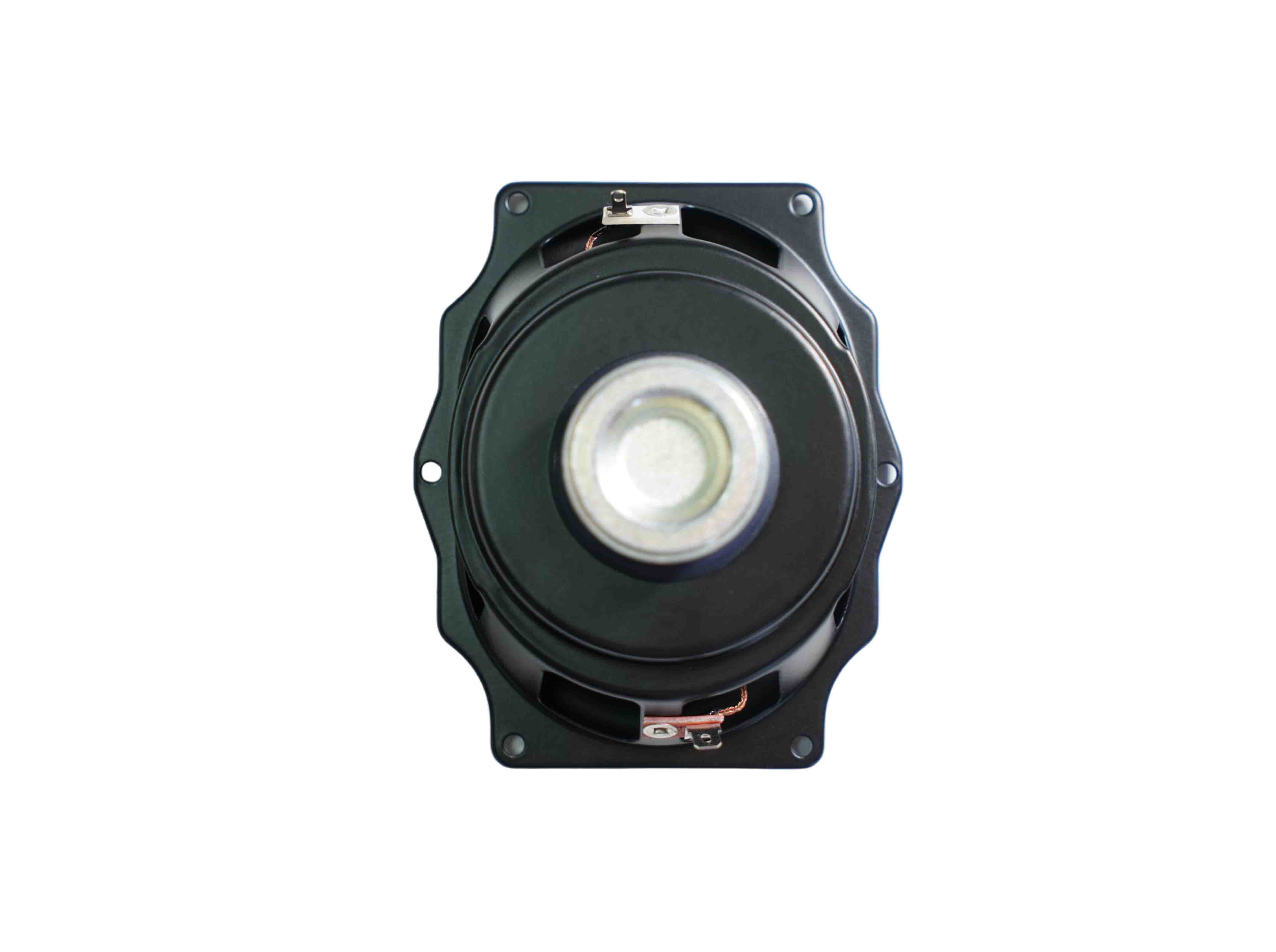

High-efficiency magnetic circuit: Large magnets provide high sensitivity and fast dynamic response.

Rigid diaphragm: Radial texture reduces breakup vibration, resulting in purer mid-bass frequencies. Rubber suspension is high-temperature resistant

and anti-aging, suitable for automotive environments.

Advantages

Balanced Sound Quality:Coaxial units ensure consistent sound source and precise positioning; the mid-bass units deliver powerful bass.

Durability:Rubber surrounds and injection-molded frame adapt to the temperature and vibration environment inside the vehicle.

Easy Installation:Standard mounting holes are compatible with most vehicle models' original mounting positions.

Instructions

During installation, ensure a tight seal (e.g., install waterproof covers on car doors) to prevent air leakage from affecting bass.

Match the power of the car amplifier to avoid overloading and burning out the voice coil.

Adjust the tweeter direction angle of the coaxial unit to optimize the sound.

Application Scenarios

Car audio upgrade: Replace the original car speakers to improve musical detail and dynamic range.

Modified audio system: Build a high-end car audio system by adding a crossover and amplifier.
